| Name: | Mouse monoclonal antibody to SARS-CoV2 ACE2 binding domain |
| Immunogen: | Recombinant SARS-CoV2 S-Protein ACE2 binding domain expressed in and purified from E. coli, EnCor product PROT-SARS-CoV2-bd |
| HGNC Name: | N.A. |
| UniProt: | P0DTC2 |
| Molecular Weight: | Intact S-Protein 142kDa |
| Host: | Mouse |
| Isotype: | IgG1 |
| Species Cross-Reactivity: | NA |
| RRID: | AB_2861174 |
| Format: | Purified antibody at 1mg/mL in 50% PBS, 50% glycerol plus 5mM NaN3 |
| Applications: | WB, ICC/IF, IHC |
| Recommended Dilutions: | WB: 1:1,000-1:3,000. ICC/IF: 1:1,000 |
| Storage: | Shipped on ice. Store at 4°C for short term, for longer term at -20°C. Avoid freeze / thaw cycles. |
Immunofluorescent analysis of HEK293 cells transfected with pCI-Neo-Mod vector (5) including SARS-CoV2-bd cDNA and stained with mouse mAb to SARS-CoV2-bd, MCA-5G8, dilution 1:1,000, in red. The blue is Hoechst staining of nuclear DNA. The MCA-5G8 antibody reveals expression of SARS-CoV2-bd protein only in transfected cells. DAPI reveals the nuclear DNA of both transfected and non-transfected cells.

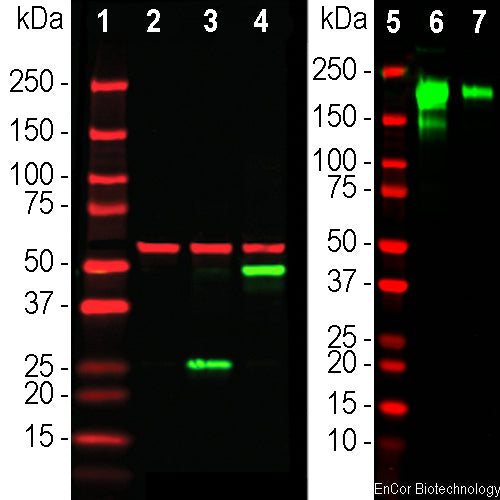

Left Panel: Western blot analysis of HEK293 cell lysates using mouse mAb to SARS-CoV2-bd protein, MCA-5G8, dilution 1:3,000 in green: [1] protein standard, [2] non-transfected cells, [3] cells transfected with pCI-Neo-Mod containing the SARS-CoV2-bd cDNA, and [4] cells transfected with pCI-Neo-GFP vector expression construct containing containing the SARS-CoV2-bd cDNA. The band at 25kDa mark in the transfected cells demonstrates expression of SARS-CoV-bd protein, and the band at about 50kDa corresponds to a GFP-SARS-CoV2-bd fusion protein. The same blot was simultaneously probed with EnCor rabbit pAb to HSP60, RPCA-HSP60, dilution 1:5,000, in red, revealing a single band at 60kDa in both transfected and non-transfected cells. Right Panel: Blot of full length recombinant SARS-CoV2 S-protein expressed in HEK293 cells, product 10561-CV, obtained from R&D Systems. Lane 6 shows a loading of 1µg and lane 7 is 100ng. On longer exposure of the blot the antibody could readily detect 10ng of the S-protein. Lanes 1 and 5 are molecular weight standards of indicated size.
Mouse Monoclonal Antibody to SARS-CoV2 S-Protein ACE2 Binding Domain
Cat# MCA-5G8
$120.00 – $800.00
In late 2019 a novel infectious disease was discovered in Wuhan, China which was quickly recognized to be caused by a previously unknown RNA coronavirus. The virus was very rapidly isolated, the full RNA sequence determined and put on-line on the 10th of January 2020. The sequence revealed that the virus was most closely related to certain bat coronaviruses and the severe acute respiratory syndrome (SARS) coronavirus. Immediately biotechnology companies and research institutes used the RNA sequence information to generate vaccine candidates. The SARS virus was known to enter and infect human cells by means of the so-called spike or S-protein which binds to the extracellular domain of the angiotensin converting enzyme 2 (ACE2) protein, which is then internalized bringing the virus into the cell. Cryoelectron microscopy and binding studies quickly determined that the S-protein of SARS-CoV2 is structurally similar to to that of the SARS virus and also binds to the ACE2 receptor, albeit with higher affinity than the S-protein of SARS. This focuses attention on the ACE2 binding site on the SARS-CoV2 S-protein and for the complementary region on ACE2 which binds the SARS-CoV2 S-protein. We therefore expressed both these regions in E. coli, our products PROT-SARS-CoV2-bd and PROT-ACE2-bd and raised antibodies to them.
The MCA-5G8 antibody was made against our recombinant construct comprising amino acids 308-541 in the S-protein sequence in SARS-CoV2 Wuhan-Hu-1, complete genome. The antibody works well on western blots of crude homogenates of HEK293 cells transfected with the SARS-CoV2 binding domain, cleanly producing the appropriate sized band and as expected also binds the full length S-protein. In addition S-protein transfected cells and cells infected with patient derived SARS-CoV2 show clean and strong immunofluorescence staining of transfected or infected cells. We are currently determining the exact peptide epitope of this and our other SARS-CoV2 S-protein antibodies and also measuring their kinetic properties. EnCor supplies another mouse monoclonal antibody to the SARS-CoV2 S-protein ACE2 binding domain MCA-2G1 and also a rabbit polyclonal RPCA-SARS-CoV2-bd. Mouse select image above left for larger view.
Vero cells are a cell line derived derived from monkey kidney and express an ACE2 receptor similar to that found in humans, and are therefore susceptible to infection by patient derived SARS-CoV2 virus. The cells were grown in culture, fixed, and stained with the DNA dye DAPI, revealing cell nuclei (control, top left), The remaining three panels show staining of similar cells following infection with SARS-CoV2 virus. Cells were then reacted with all three EnCor antibodies to the cell binding domain of the SARS-CoV2 spike protein, namely MCA-5G8, MCA-2G1 and RPCA-SARS-CoV2-bd as indicated. Antibody binding was revealed with appropriate ALEXA green (top right, bottom left) or red (bottom right) secondary antibodies. The virus accumulates in the cytoplasm of infected cells. The cells were grown and infected under appropriate safety and containment in the University of Florida Department of Pathology. Mouse select image above for larger view.
This antibody was raised against a recombinant construct of the SARS-CoV2 spike or S-protein which includes the entire region which interacts with ACE2. The specific binding to ACE2 is essential for viral internalization and infection. We designed this construct based on amino acids 308-541 in the S-protein sequence in Isolate Wuhan-Hu-1, complete genome. This is a defined globular domain recently shown to include all of the amino acids necessary for ACE2 binding. The construct was expressed in and purified from E. coli and includes an N-terminal His-tag and other vector derived sequence shown underlined below. Amino acids which interact directly with the ACE2 protein are printed in bold, data based on the cryoEM study of Walls et al. (3).
MHHHHHHSSG LVPRGSGMKE TAAAKFERQH MDSPDLGTDD DDKAMADIGS EFVEKGIYQT 60
SNFRVQPTES IVRFPNITNL CPFGEVFNAT RFASVYAWNR KRISNCVADY SVLYNSASFS 120
TFKCYGVSPT KLNDLCFTNV YADSFVIRGD EVRQIAPGQT GKIADYNYKL PDDFTGCVIA 180
WNSNNLDSKV GGNYNYLYRL FRKSNLKPFE RDISTEIYQA GSTPCNGVEG FNCYFPLQSY 240
GFQPTNGVGY QPYRVVVLSF ELLHAPATVC GPKKSTNLVK NKCVNF 286
Number of amino acids: 286
Molecular weight: 32074.01
Theoretical pI: 8.01
Amino acid composition:
Ala (A) 17 5.9%
Arg (R) 13 4.5%
Asn (N) 22 7.7%
Asp (D) 16 5.6%
Cys (C) 9 3.1%
Gln (Q) 9 3.1%
Glu (E) 11 3.8%
Gly (G) 21 7.3%
His (H) 8 2.8%
Ile (I) 11 3.8%
Leu (L) 16 5.6%
Lys (K) 16 5.6%
Met (M) 4 1.4%
Phe (F) 19 6.6%
Pro (P) 15 5.2%
Ser (S) 23 8.0%
Thr (T) 16 5.6%
Trp (W) 2 0.7%
Tyr (Y) 16 5.6%
Val (V) 22 7.7%
Total number of negatively charged residues (Asp + Glu): 27
Total number of positively charged residues (Arg + Lys): 29
Extinction coefficients are in units of M-1 cm-1, at 280 nm measured in water.
Extinction coefficient 35340
Abs 0.1% (=1 g/l) 1.102, assuming all pairs of Cys residues form cystines
Extinction coefficient 34840
Abs 0.1% (=1 g/l) 1.086, assuming all Cys residues are reduced
1. Wu, F et al. A new coronavirus associated with human respiratory disease in China. Nature doi:10.1038/s41586-020-2008-3.2020 579:265-269 (2020).
2. Ren, L-L et al. Identification of a novel coronavirus causing severe pneumonia in human: a descriptive study. Chin Med J (Engl) doi:10.1097/CM9.0000000000000722 133:1015-24 (2020).
3. Walls, A C et al. Structure, Function, and Antigenicity of the SARS-CoV-2 Spike Glycoprotein. Cell doi: 10.1016/j.cell.2020.02.058 180:1-12 (2020)
4. Yan, R et al. Structural basis for the recognition of SARS-CoV-2 by full-length human ACE2. Science doi:10.1126/science.abb2762 367:1444–8 (2020).
5. Wang, D-S et al. The pleckstrin homology domain of human beta I sigma II spectrin is targeted to the plasma membrane in vivo. Biochem. Biophys. Res. Comm. 225:420-6 (1996).
